Final Design Concept
Final Design Concept

Many design iterations were made, a couple were 3d-printed, and this was concluded to be be the best design for the user experience, production cost, structural integrity, ease of assembly and many other considerations. The ease-of-assembly for this particular design is much simpler than previous iterations, which came to be by introducing base-assembly hardware, an avenue specifically closed by prior design criteria. Previous designs had required a plastic cantilever snap fit analysis, aided by MIT and Fictiv resources, in addition to polyjet material properties listed by Stratasys. This model was handed off in the form of .stl to an injection molding specialist to prepare for production.

Copyright 2016 Arizona GameCo LLC. Patent Pending

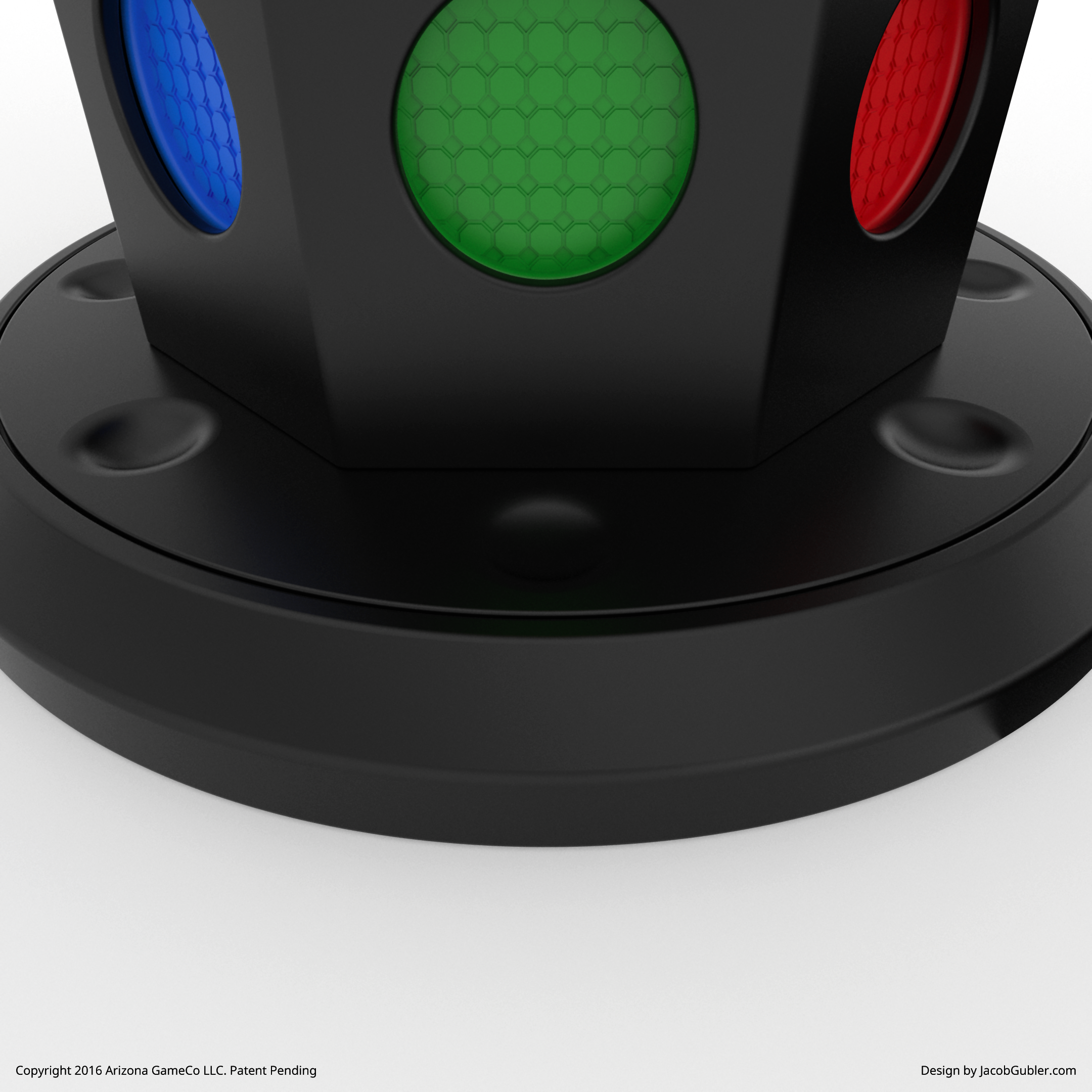

3D Print of Final Prototype
3D Print of Final Prototype

Copyright 2016 Arizona GameCo LLC. Patent Pending

Base and Top Section
Base and Top Section

Copyright 2016 Arizona GameCo LLC. Patent Pending

3D Print of Final Prototype
3D Print of Final Prototype

Copyright 2016 Arizona GameCo LLC. Patent Pending

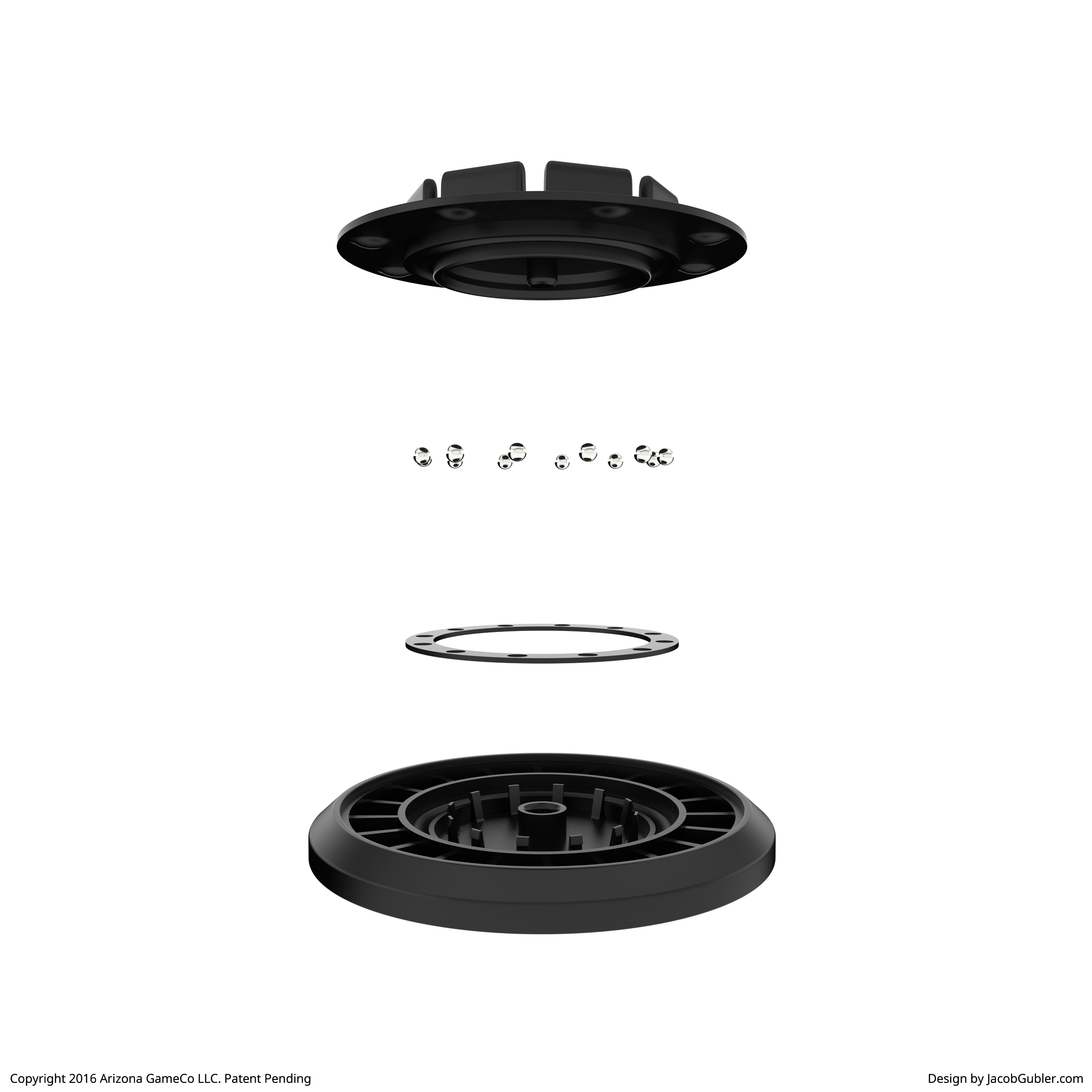

Assembly Diagram
Assembly Diagram

Final Prototype

Copyright 2016 Arizona GameCo LLC. Patent Pending

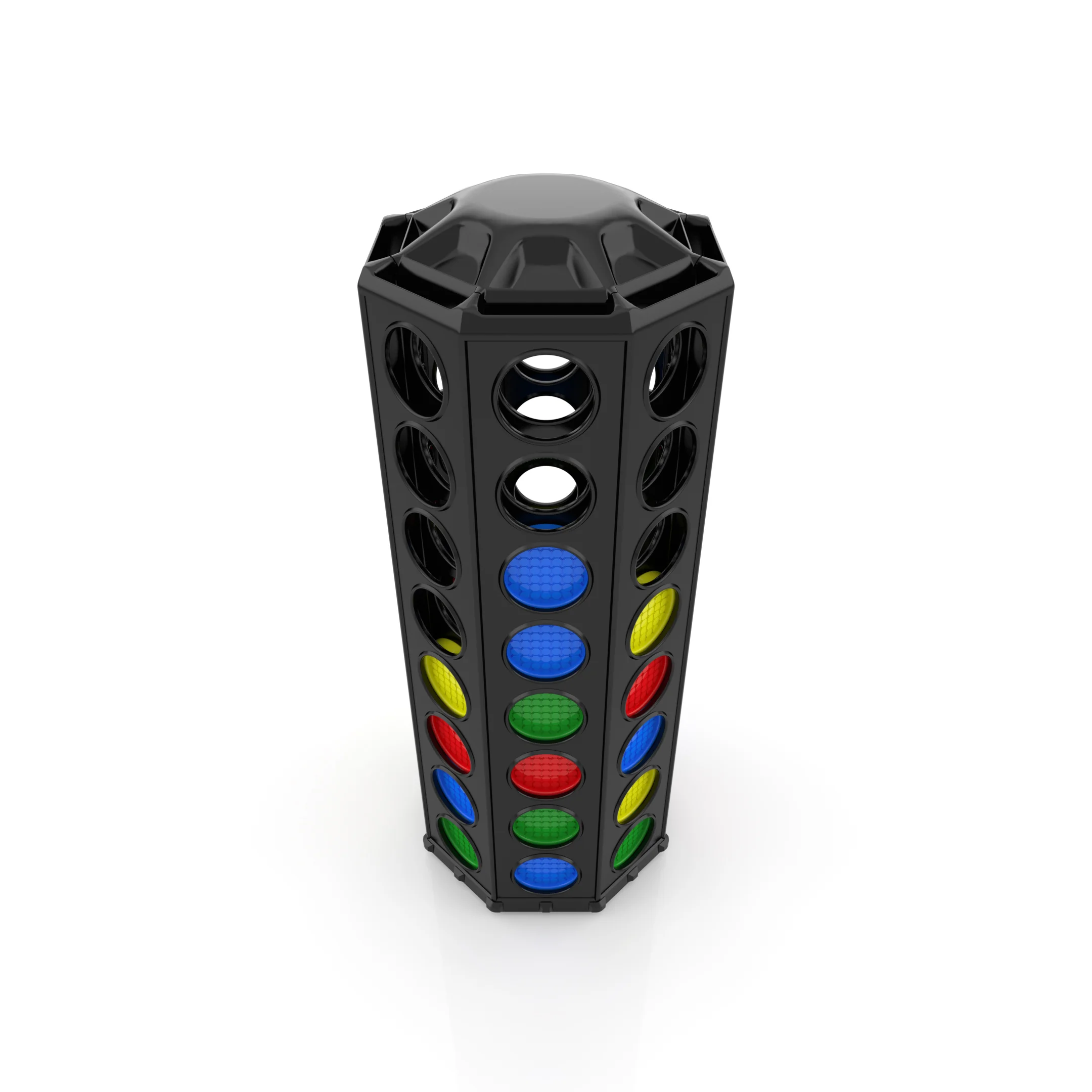

Final Design Concept
Final Design Concept

Copyright 2016 Arizona GameCo LLC. Patent Pending

Mid-Iteration Concept
Mid-Iteration Concept

Mid-iteration, includes 4 printed parts, a removable solid upper grid, and 3 base parts that form a single assembly. Plastic cantilever snap fit analysis was aided by MIT and Fictiv resources, in addition to polyjet material properties listed by Stratasys.

Copyright 2016 Arizona GameCo LLC. Patent Pending

3D Print of Mid-Iteration Concept
3D Print of Mid-Iteration Concept

Copyright 2016 Arizona GameCo LLC. Patent Pending

Mid-Iteration Base Section
Mid-Iteration Base Section

The snap-fit base created a final product that could not be easily disassembled by the end user, but increased production cost and the ease with which the base could be broken during assembly and by the end user.

Copyright 2016 Arizona GameCo LLC. Patent Pending

3D Print of Mid-Iteration Concept
3D Print of Mid-Iteration Concept

Copyright 2016 Arizona GameCo LLC. Patent Pending

Mid-Iteration Assembly Diagram
Mid-Iteration Assembly Diagram

Copyright 2016 Arizona GameCo LLC. Patent Pending

Mid-Iteration Base Concept
Mid-Iteration Base Concept

Copyright 2016 Arizona GameCo LLC. Patent Pending

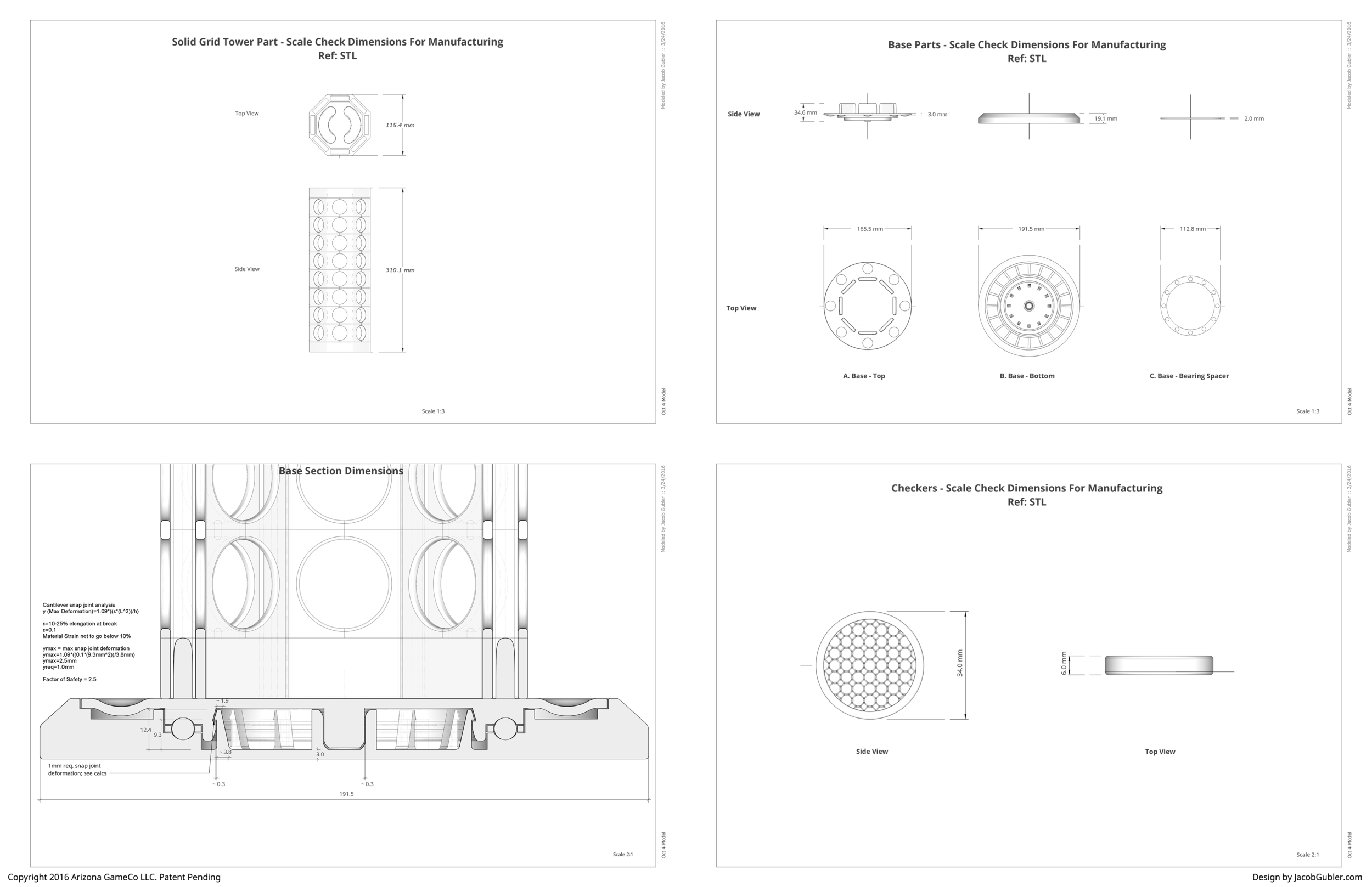

Schematic Overview
Schematic Overview

Mid-Iteration schematic overview and manufacturing data.

Copyright 2016 Arizona GameCo LLC. Patent Pending

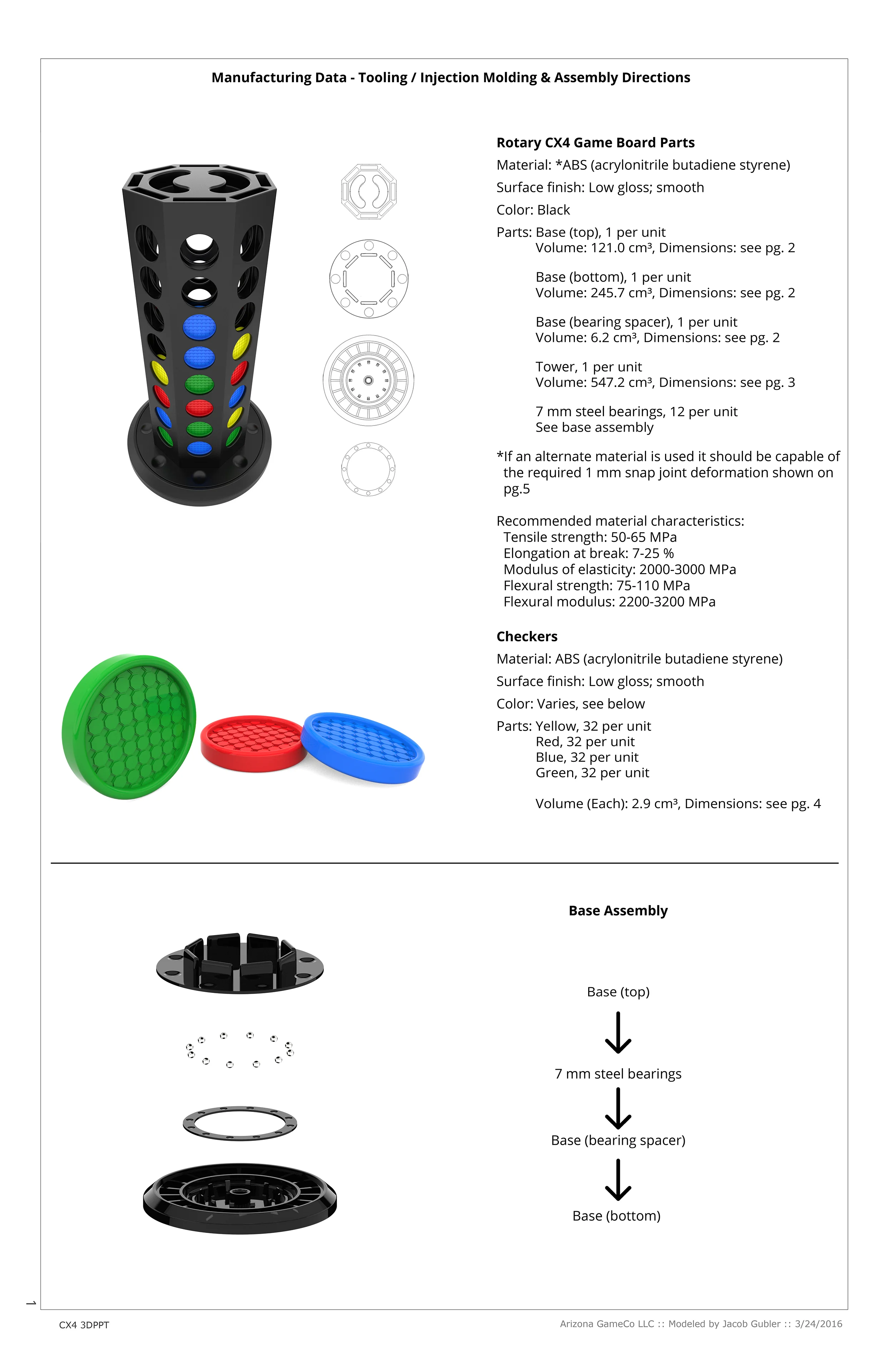

Manufacturing Data
Manufacturing Data

Copyright 2016 Arizona GameCo LLC. Patent Pending

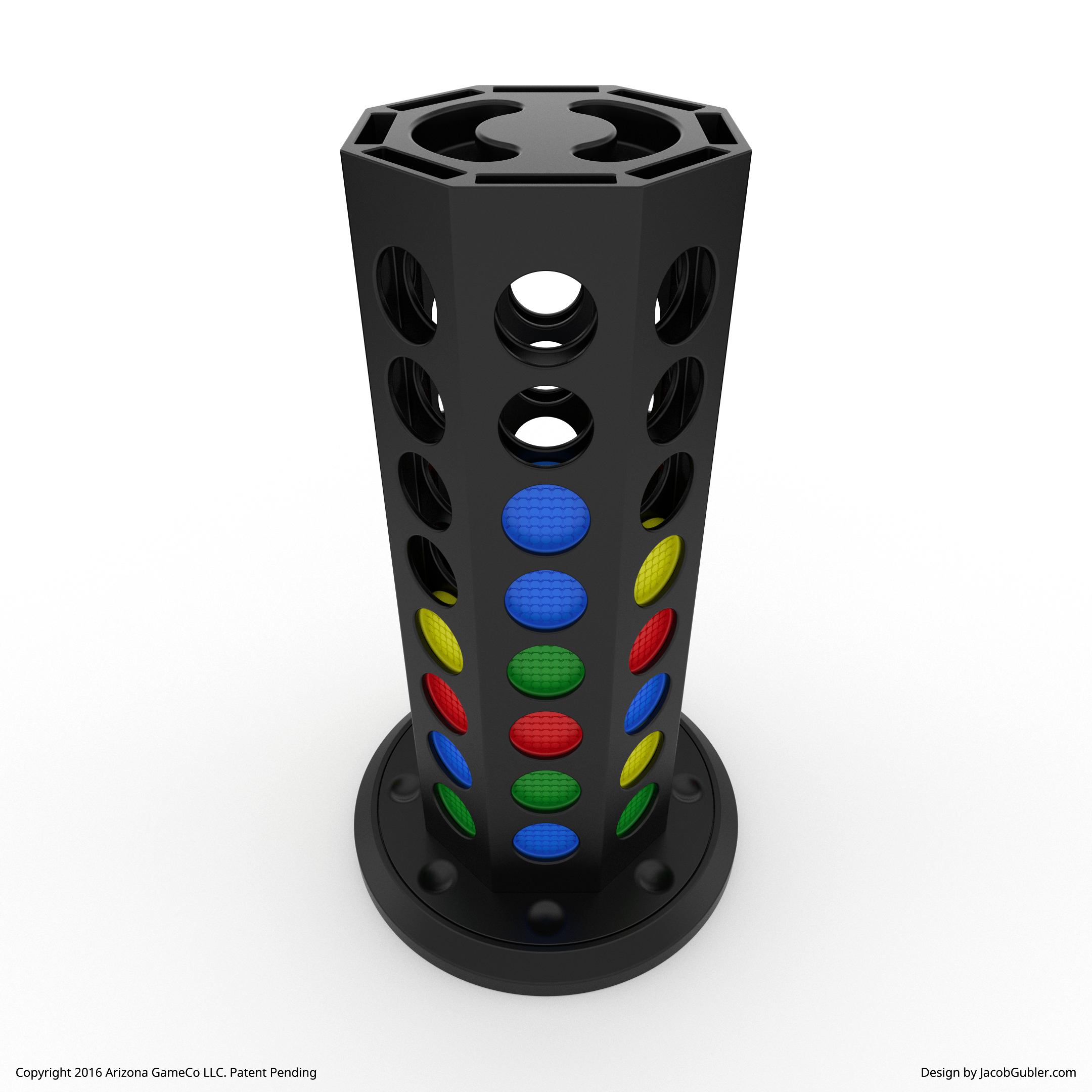

Final Concept
Final Concept

Copyright 2016 Arizona GameCo LLC. Patent Pending

Final Concept
Final Concept

Copyright 2016 Arizona GameCo LLC. Patent Pending

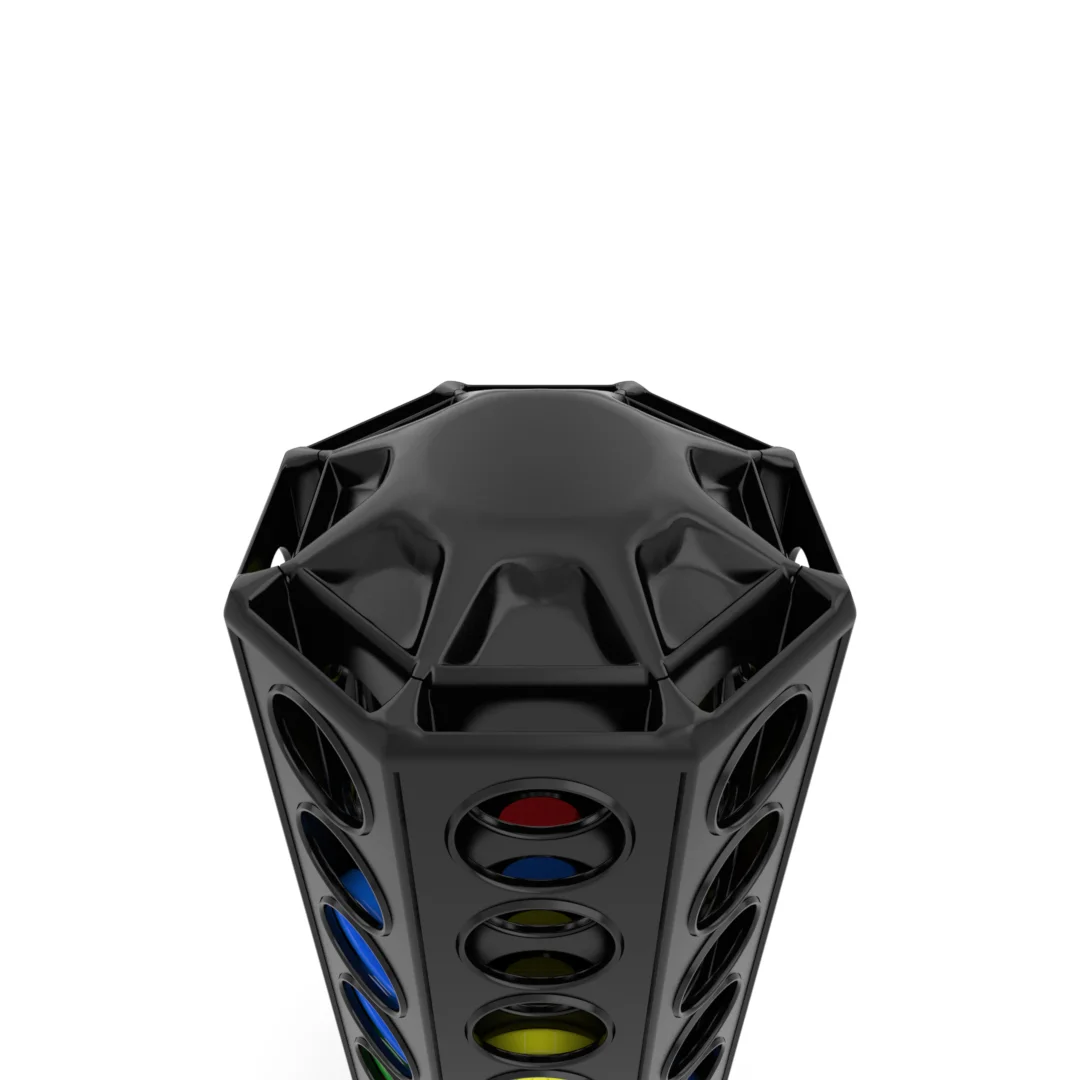

Mid-Iteration Concept
Mid-Iteration Concept

Copyright 2016 Arizona GameCo LLC. Patent Pending
