3D Print of San Francisco (1:1250, Verowhite, ~6' x ~6')
3D Print of San Francisco (1:1250, Verowhite, ~6' x ~6')

San Francisco (1:1250) - Printed at Autodesk's pier 9 facility on a Stratasys Connex 500. Steelblue, who was then employing me as an independent contractor, supplied a 3ds max model of SF to expedite the production of a 3D printable model. Design entailed remodeling everything from scratch, and modifying details with minimum print resolution and estimated part durability in mind. Many areas of the city were created without a base model reference and solely from interpreting google maps, a strategy we would later use to model Manhattan, Boston, Houston and other projects. The print got some news coverage, including CBS and CGArchitect among others.

My time at Steelblue as producer and manager of 3d print operations in a photo album.

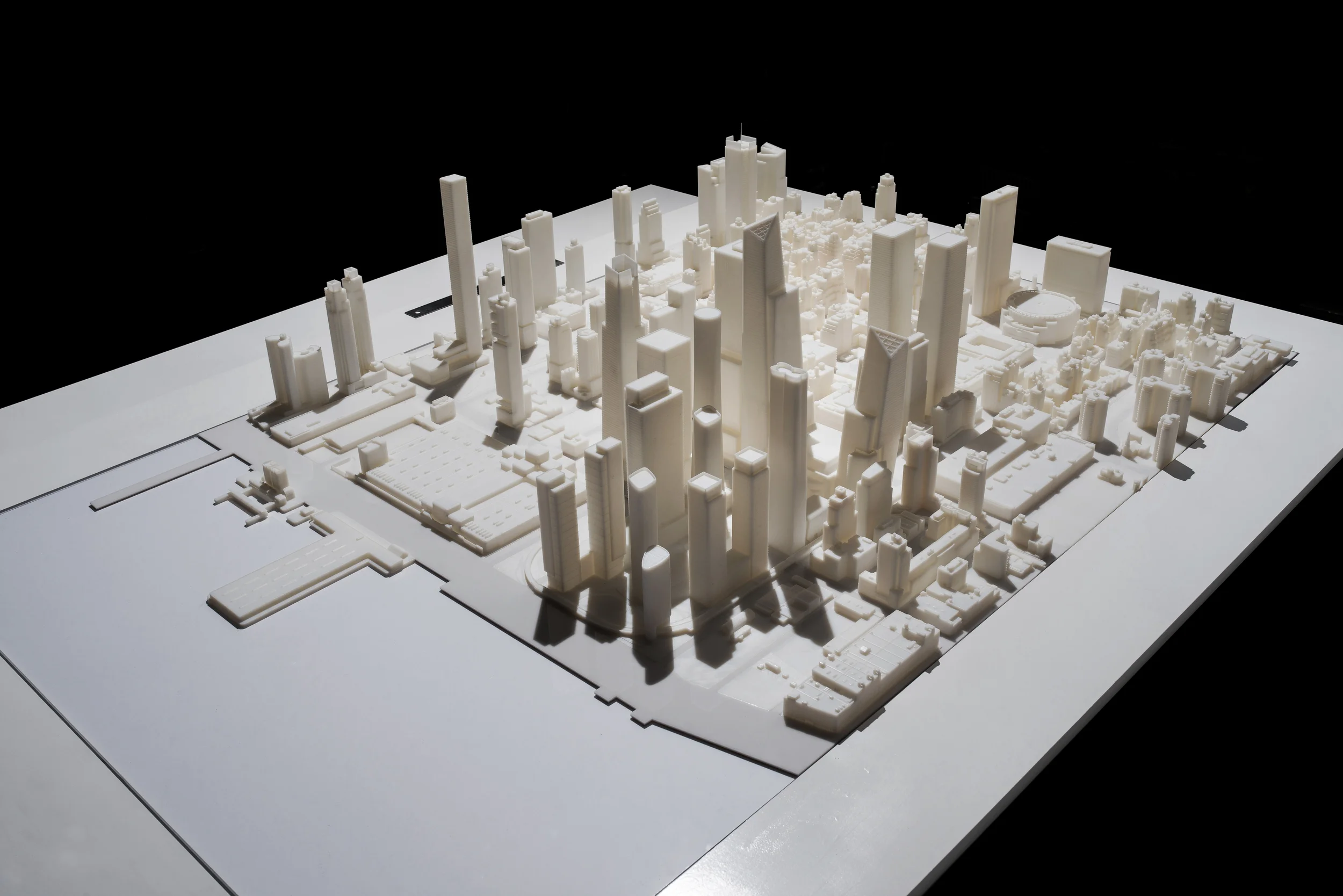

3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)
3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)

Steelblue was tasked by Tishman Speyer to create a 3D printed model of Hudson Yards to display future developments in the region. The model was made from scratch in Sketchup. Printed at 1:1250 scale in verowhite, a polyjet material used by Steelblue's Objet30pro.

3D Print of San Francisco (1:1600, Veroclear)
3D Print of San Francisco (1:1600, Veroclear)

Another print of SF, this print with a southwest expansion modeled by myself and another detailer at Steelblue for Jay Paul.

3D Print of Boston (1:1250, Veroclear)
3D Print of Boston (1:1250, Veroclear)

3D print of downtown Boston around new development by Millennium partners. Each block was printed hollow with 1.5 mm walls.

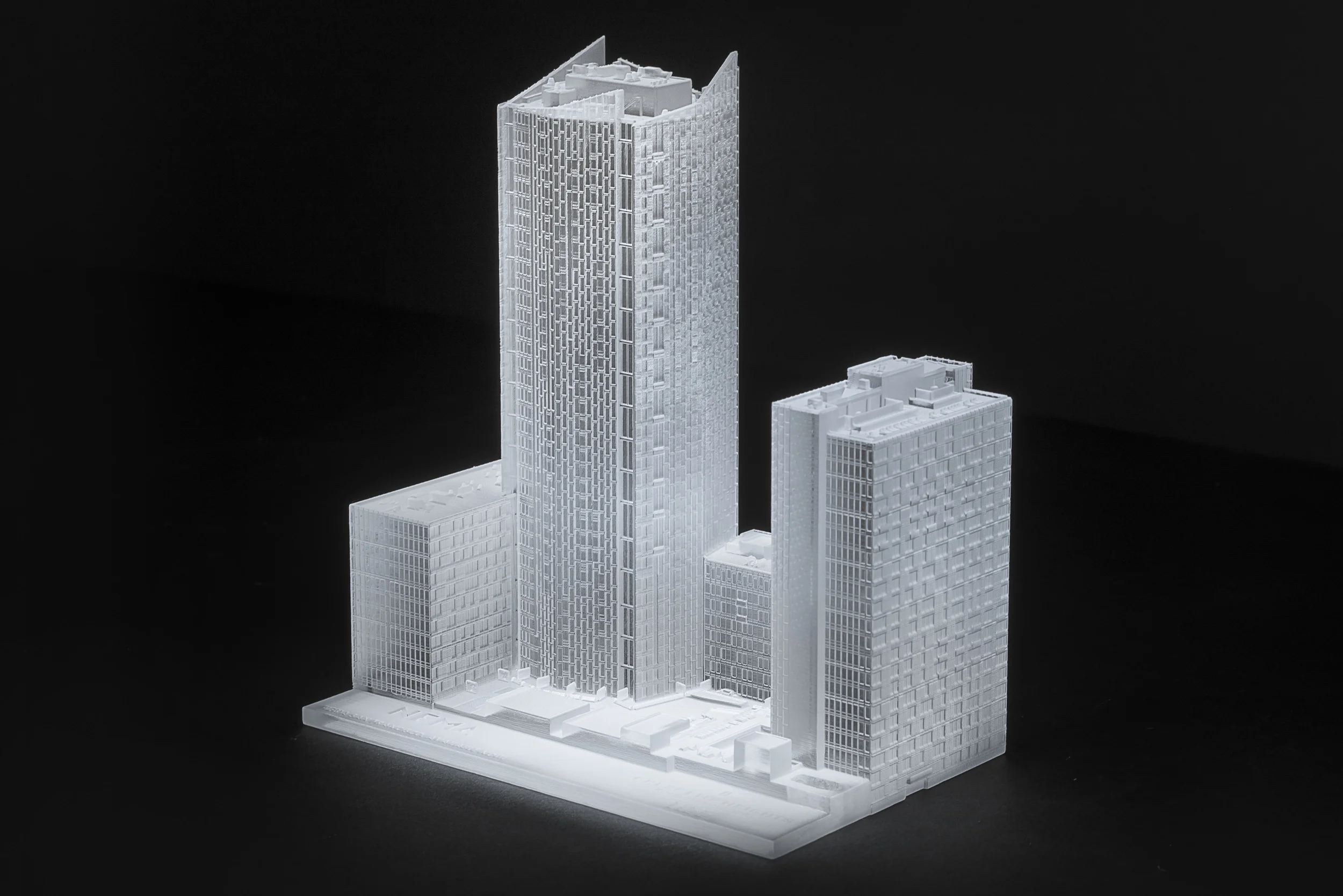

3D Print of NEMA in SF (1:600, Veroclear)
3D Print of NEMA in SF (1:600, Veroclear)

High detail trophy print I prepared for one of Steelblue's clients.

3D Print of Manhattan (1:3000, Verowhite)
3D Print of Manhattan (1:3000, Verowhite)

Experiment with low detail massing models at low scales including numerous segments of Manhattan printed at the full size of the Objet30pro print bed.

3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)
3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)

Hudson yards continued...

3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)
3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)

Hudson yards continued...

3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)
3D Print of Hudson Yards in Manhattan (1:1250, Verowhite)

Hudson yards continued...

3D Print of San Francisco (1:1250, Verowhite)
3D Print of San Francisco (1:1250, Verowhite)

Original SF model continued...

3D Print of San Francisco (1:1250, Verowhite)
3D Print of San Francisco (1:1250, Verowhite)

Original SF model continued...

3D Print of San Francisco (1:1600, Veroclear)
3D Print of San Francisco (1:1600, Veroclear)

Jay Paul's model continued...

3D Print of San Francisco (1:2000, Veroclear)
3D Print of San Francisco (1:2000, Veroclear)

Steelblue's in-house master model

3D Print of San Francisco (1:2000, Veroclear)
3D Print of San Francisco (1:2000, Veroclear)

Steelblue's in-house master model continued...

3D Model of San Francisco
3D Model of San Francisco

3D-printable model of SF, modeled from scratch in Sketchup.

Hudson Yards, Manhattan
Hudson Yards, Manhattan

3D-printable model of Hudson Yards, modeled from scratch in Sketchup.

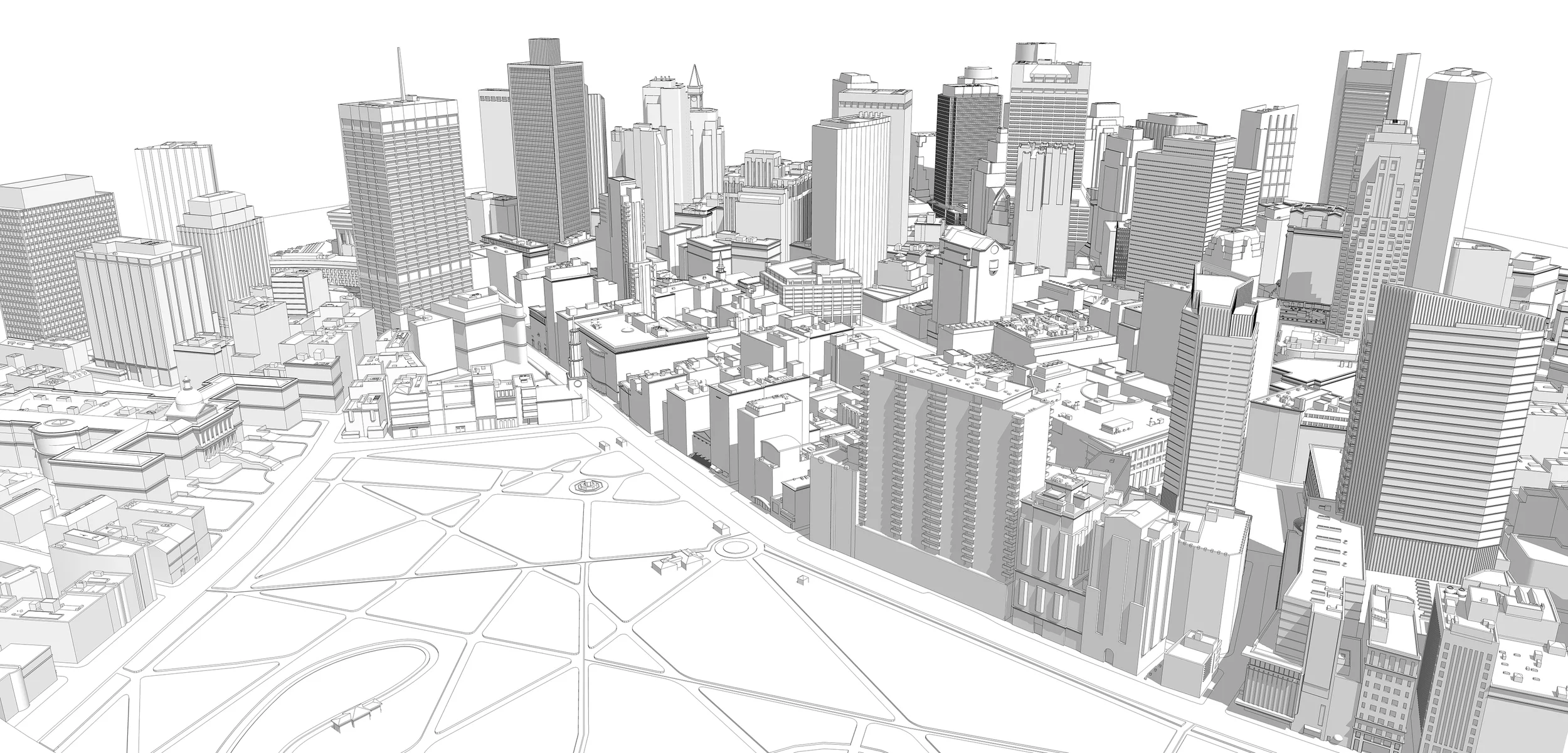

3D Model of Boston
3D Model of Boston

3D-printable model of Boston, modeled from scratch in Sketchup.
